Silicone Valve
Advantage:
1. Item Name: 12.85mm Silicone Fluid Valve
2. Material: FDA& LFGB Food Grade Liquid Silicone
3. Process: LSR Injection Molding
4. Feature: No-leaking, No-spilling
5. Application: Mayonnaise Dispensing
6. MOQ: 50,000pcs/ lot
DESCRIPTION

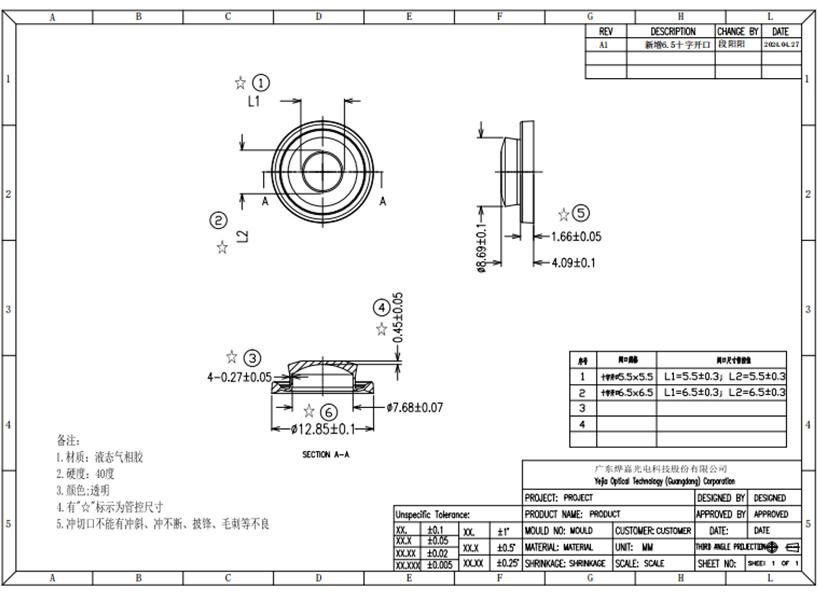

Specification
| Product Name | LSR Injection Molding Leakage Proof 12.85mm Silicone Fluid Valve with Cross Slit Cut for Mayonnaise Bottle |
| Model Number | HHSV55 |
| Material | FDA& LFGB Approved Food Grade Liquid Silicone |
| Color | Clear |
| Hardness | 40 Shore A |
| Outer Diameter | 12.85mm |
| Slit Cut Type | Cross Slit Cut Type |
| Slit Cut Size | 6.5*6.5mm |
| Matched Plastic Valve Seat Size | 14.6mm Plastic PP Ring |
| Mold Type | Liquid Injection Molding |
| Process | LSR Injection Molding - Whole Piece Inspection - Automatic Slit Punching& Cut - Quality Checking - Dust Free Packing - Shipping |
| Mold | Existed Mold |
| MOQ | 50,000 PCS |
| Daily Capacity | 200,000 pcs/ line |
| Mold Cavity | 256CAV |
| Machine | Vertical LSR Injection Molding Machine |
| Machine tonnage | 160T |
| Workshop | Class 100,000 Clean Production Workshop |
| Application | Snowflake cut silicone valves are mainly used for water bottle, due to the large flow rate |
| Intercoms | EXW, FOB, CIF |
Product Information

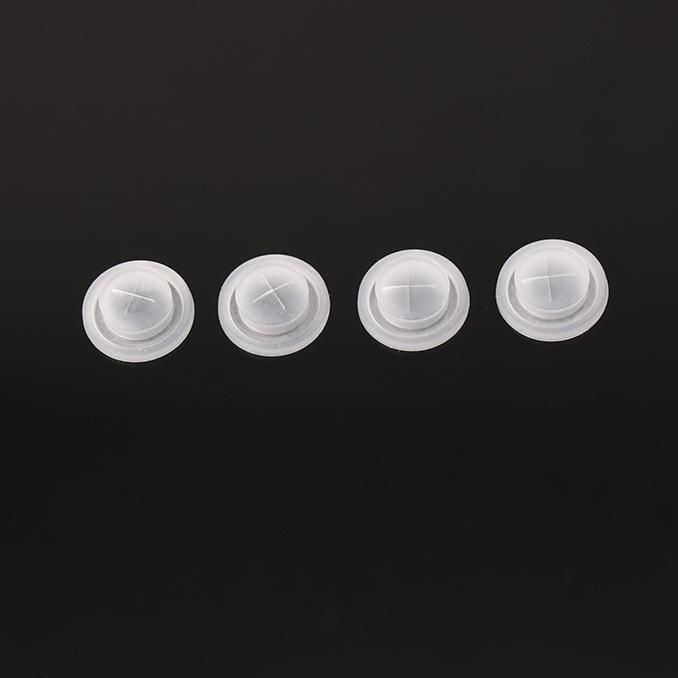

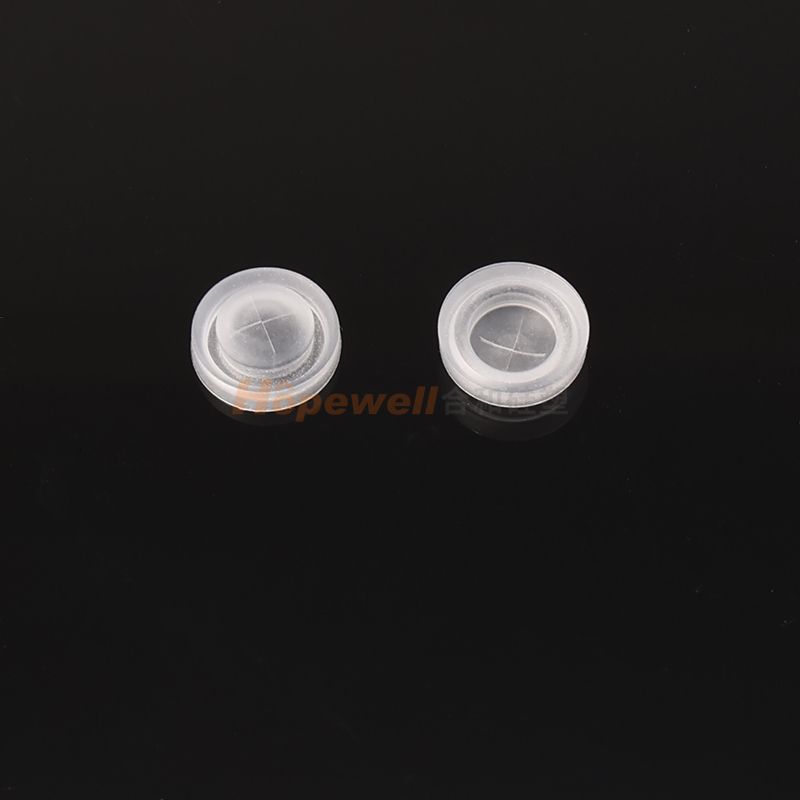

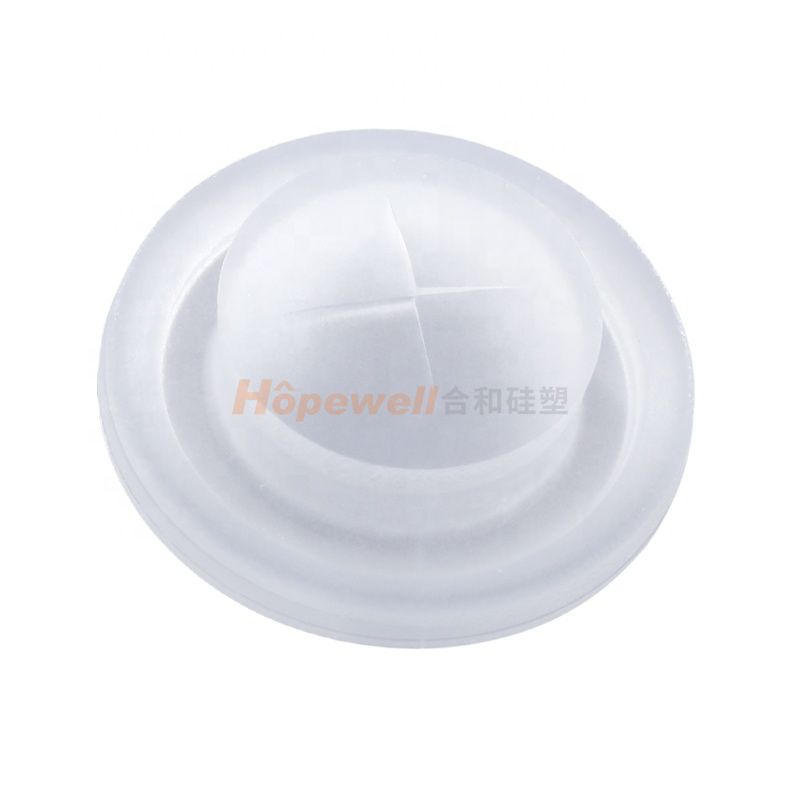

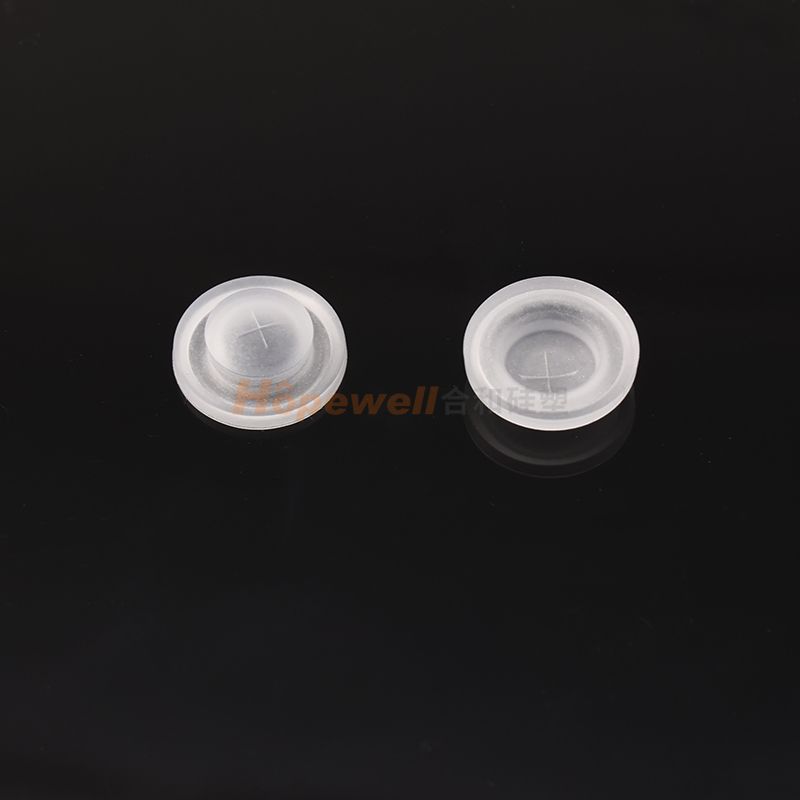

Silicone fluid valve is designed with cross slit cut, made of food grade liquid silicone material, and processed by LSR injection molding. The 12.85mm silicone fluid valve is designed with a 6.5*6.5mm cross slit cut. The cross slit can prevent leakage and provide a straight flows. This makes the valve suitable for low opening pressure and large flow rate, making it ideal for dispensing systems for mayonnaise, ketchup and other thick liquid.
1. Silicone fluid valve is made of food safe high elastic and ultra-transparent liquid silicone, LFGB and FDA approved.
2. Silicone fluid control valve is processed by liquid silicone rubber injection molding, daily capacity reaches to 200,000pcs per automatic punching line.
3. Spill proof and mess free cross slit silicone valves have passed inverted leak proof test for 7 days* 24 hours, there is no leakage.
4. The tolerance of the curved wall thickness of 12.85mm silicone fluid valve is controlled within 0.03mm.
4. High precision cross slit silicone control valve is one squeeze, one dispensing, no leakage, no extra splits.
5. The dispensing angle of non sticking no-drip silicone valve is controlled within 30 degrees.
Leak-proof tests have been performed on each type of silicone fluid valve to ensure product quality.
Due to our unique technique, we can make non-stick slit cuts, and slit tolerance is plus and minus 0.3mm, so the dispensing function is 100% qualified.
With high precision LSR molding and slit cutting processes, we can control the dispensing angle within ±15 degrees.
With imported mold making equipment, advanced production equipment, and precision inspection instruments, our experienced LSR molding technology can guarantee the wall thickness to be uniform, therefore to ensure the silicone fluid valves to be no drip, no mess and no spill.
No drip silicone fluid valves are made of ultra transparent and high elastic food grade liquid silicone raw material, with good stretchability and no whitening.

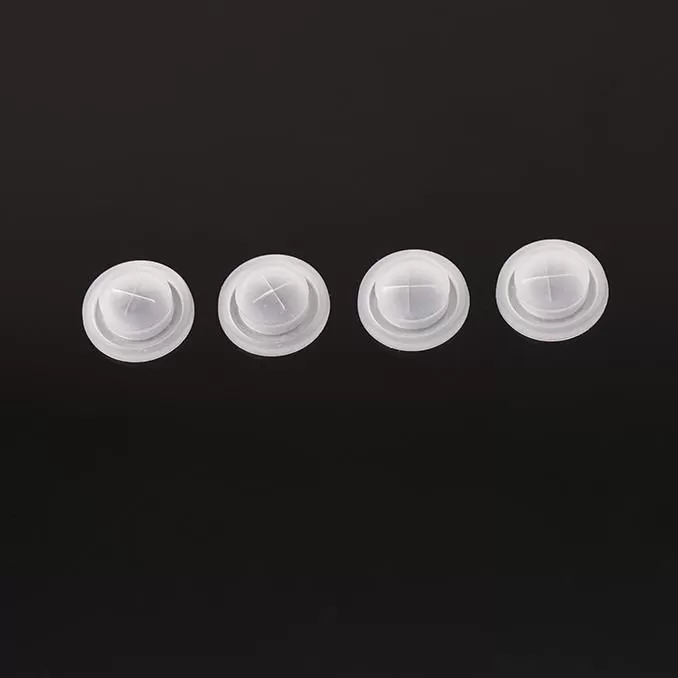

Various sizes available, suit for different dispensing requirements. Free samples for testing, shipping costs to be freight collect.

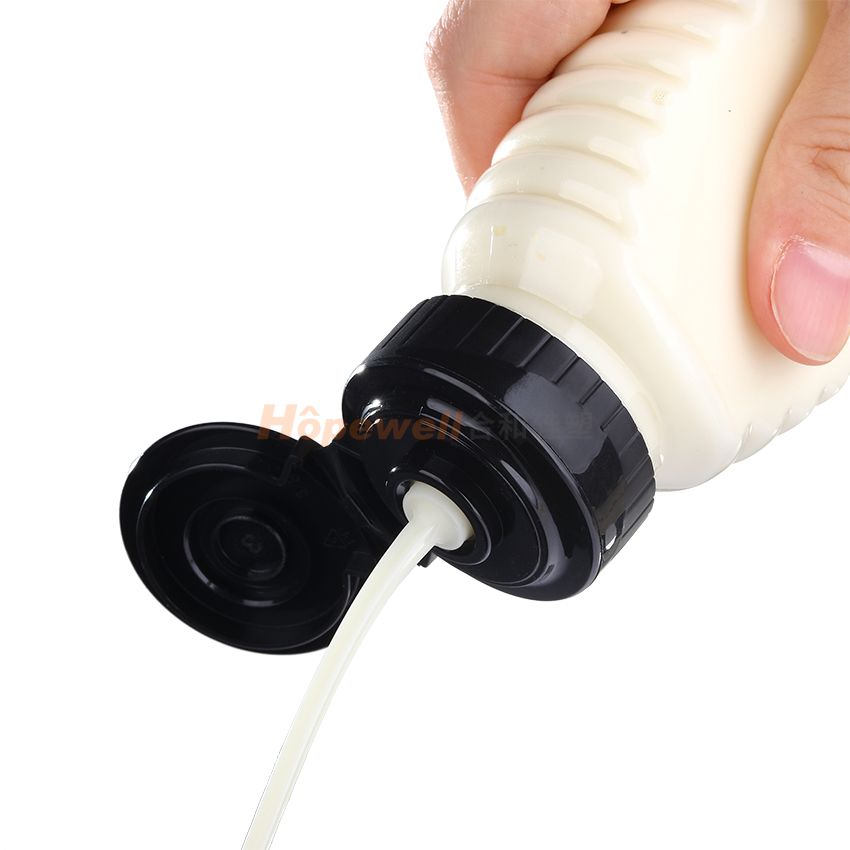

If you are interested in silicone fluid valve for mayonnaise squeezable bottles, please contact us for more information.
How to Use

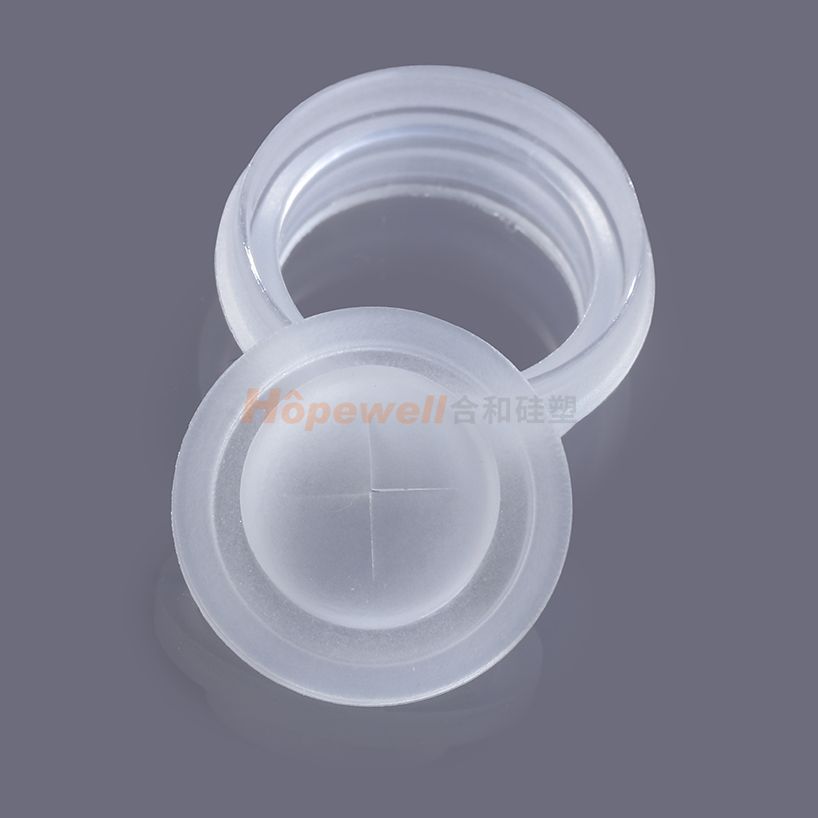

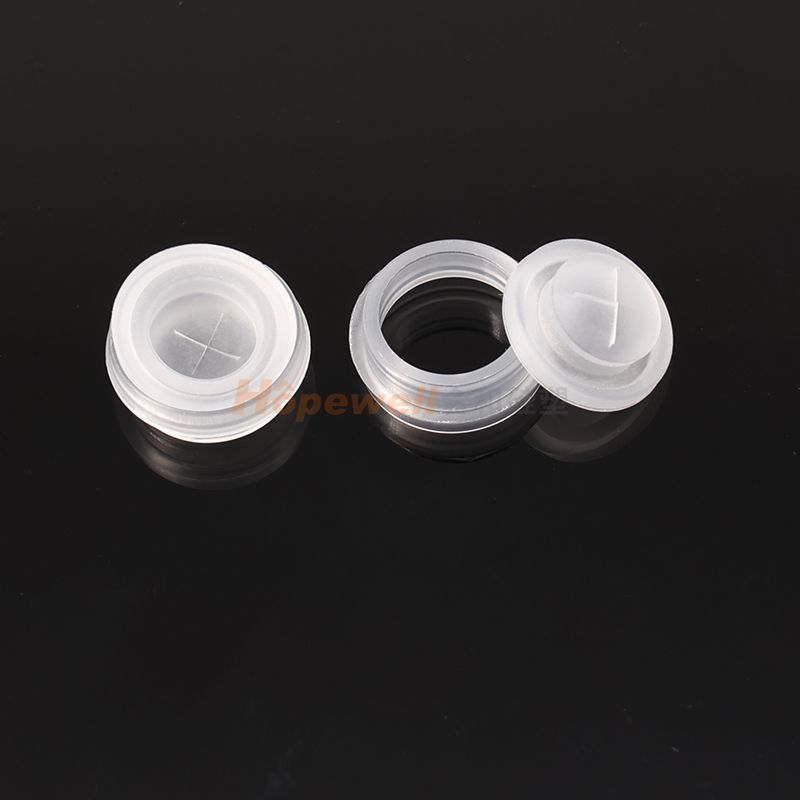

Food-grade silicone fluid valves require integration with a matched valve seat for final assembly. Then the valve seat subassembly is press-fit into the flip-top cap cavity, forming a complete leak-proof closure system.
Manufacturing Process
LSR Injection Molding - Whole Piece Inspection - Automatic Slit Punching& Cuting - Quality Checking - Dust Free Packing - Shipping
Packaging
For LSR injection molding fluid control silicone valve, to keep the product clean and not deformed while in transportation and in storage, normally, the packaging as follow:
| Item Name | PCS/ PE Bag | PCS/ Carton | Carton Size | N.W. | G.W. |
| 12.85mm Silicone Fluid Valve | 2,500pcs | 50,000pcs | 35*26*42CM | 7.5KGS | 8KGS |
FAQ
1
Are you a manufacturer or a trading company?
We're a manufacturer of silicone molding products, with about 10,000 square meters production workshops.
2
Can you provide free samples?
Free samples can be provided for quality checking, freight cost need be charged.
3
What are the advantages of Hopewell to preduce silicone valves?
Hopewell started producing silicone valves in 2011, we also have professional engineering team, precision mold manufacturing department and perfect quality control department, a 100,000-level clean production workshop, and has passed ISO9001, ISO13485, IATF16949 and ISO14001 certifications.
4
What is your MOQ for silicone valve?
Our moq is 50000 pcs for four sizes cross slit silicone valves in public mold; for customized silicone products, the final quotation shall prevail.
5
What information do I need to provide for custom silicone valves?
Please provide 2D and 3D drawings (STP format) or actual samples, then our engineering team will provide DFM for your confirmation.
6
What is the lead time for custom silicone valves?
For prototype molds, the lead time for silicone valves is about 7-15 working days; for production molds, the lead time is about 15-45 working days.
7
Can I use your silicone valves mold?
We only have four cross slit silicone valves mold can be used, other molds are customized by other customers.
8
Can you provide proof of raw materials?
Yes, we can provide MSDS, FDA, LFGB test reports for confirmation.
9
Can you provide plastic valve seat samples?
We have 4 sizes plastic valve seats in public mold, the outer diameters are 11.85mm, 12.3mm, 14.6mm and 18.6mm. Free samples are available, please contact us for more information.
10
Can i vist your factory?
Of course, highly welcome.
