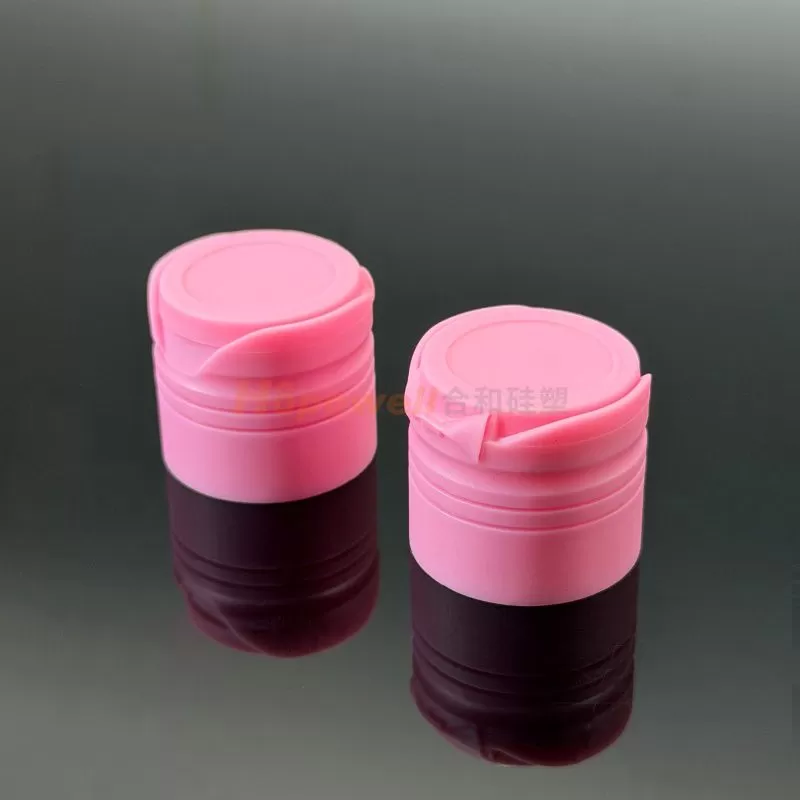

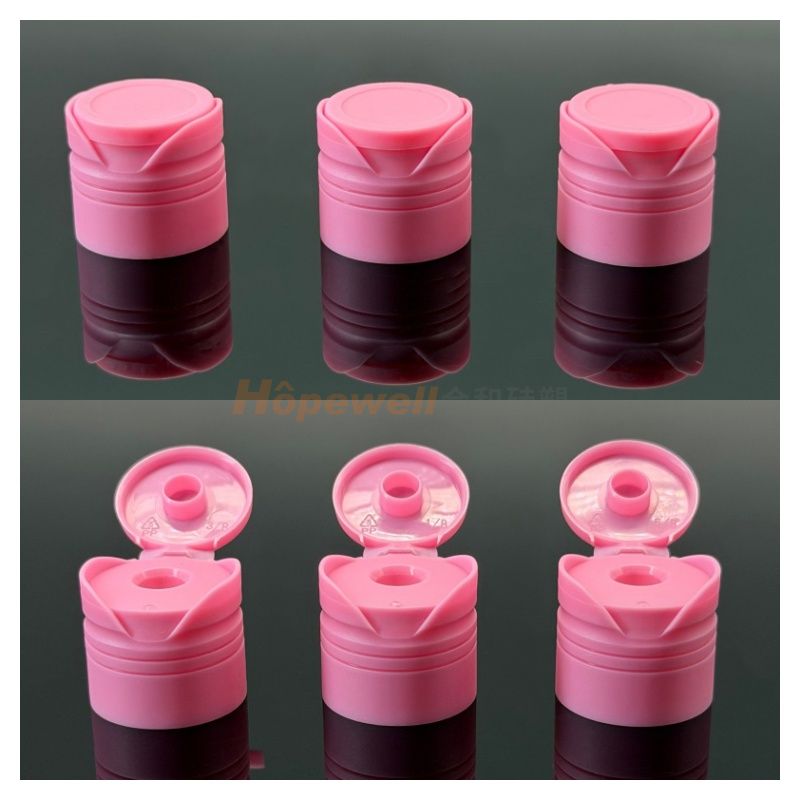

Leak Proof 24/410 Screw Bottle Cap with Silicone Valve

The 24/410 screw bottle cap is a compact dispensing closure designed for small-neck squeeze bottles. With a 24/410 neck finish, 27mm outer diameter and integrated 9.8mm cross-slit silicone valve, it provides a practical solution for controlled liquid dispensing while maintaining a clean and leak-resistant package.

This small-diameter plastic screw cap with silicone valve is particularly suitable for cosmetic, personal care and household cleaning packaging where space, sealing performance and dispensing convenience are important. The silicone valve opens when the bottle is squeezed and closes automatically when pressure is released.

Manufactured from PP plastic and liquid silicone, the closure offers a lightweight structure, reliable sealing and good compatibility with a variety of liquid formulations. Custom cap colors are available to match different brands and packaging designs.

Applications of Plastic Screw Bottle Cap with Silicone Valve

The 24/410 screw bottle cap with silicone valve can be used for:

Cosmetic lotions and creams

Facial cleansers

Shampoo and conditioner

Hair care products

Body wash and shower gel

Liquid soap

Dishwashing liquid

Household cleaning solutions

Surface cleaners

Personal care liquids

Pharmaceutical and healthcare liquids

Other squeezeable liquid products

The compact 24/410 format makes this closure especially suitable for small and medium-size bottles requiring controlled dispensing.

What is a Plastic Screw Bottle Cap?

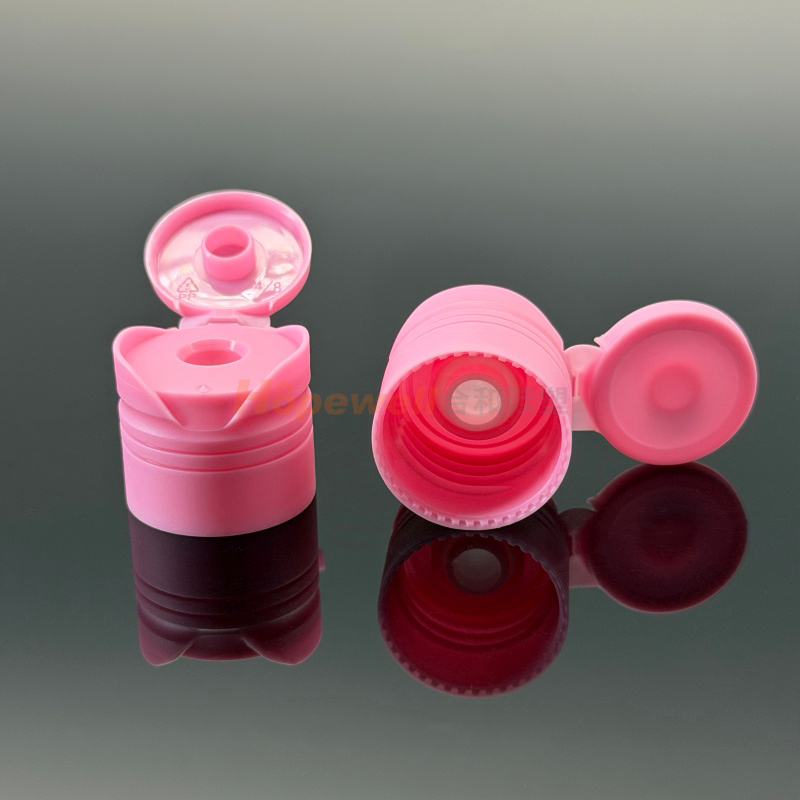

A 24/410 screw bottle cap is a threaded plastic closure designed to fit bottles with a standard 24/410 neck finish. Unlike a conventional screw cap, this version incorporates a 9.8mm silicone cross-slit valve into the dispensing opening.

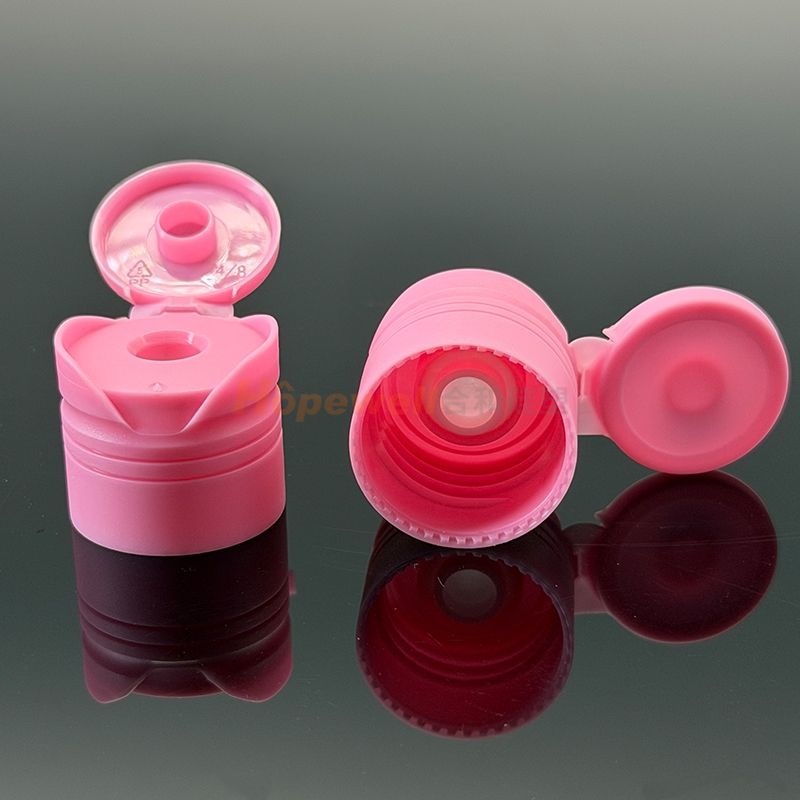

The threaded PP cap provides secure attachment to the bottle, while the silicone valve creates a flexible self-sealing dispensing interface. When the bottle is squeezed, internal pressure opens the silicone slit and allows the liquid to flow. Once the squeezing force is released, the slit closes automatically to reduce dripping and leakage.

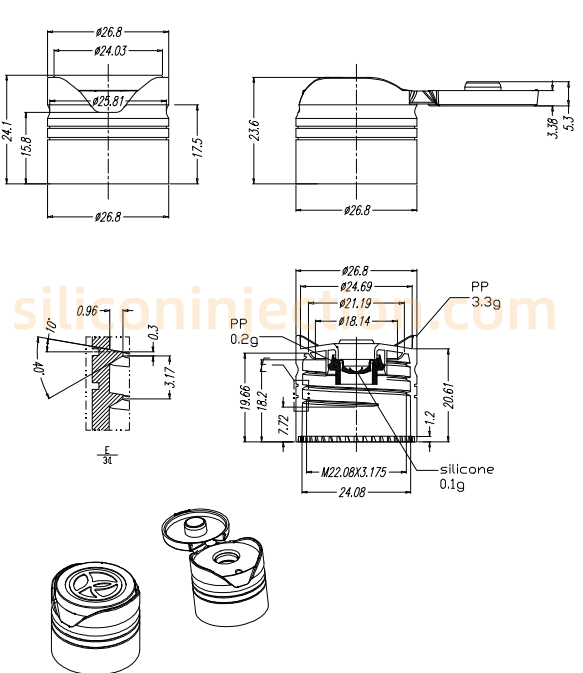

The 2D Design of 24/410 Screw Bottle Cap

Key Features of 24/410 Screw Bottle Cap with Valve

Small 24/410 Neck Finish

The compact neck size is suitable for packaging applications where a smaller closure is preferred.

27mm Outer Diameter

The approximately 27mm diameter creates a compact and lightweight closure suitable for space-efficient packaging.

Integrated 9.8mm Silicone Valve

The cross-slit silicone valve provides controlled dispensing and automatic resealing after use.

Leak-Resistant Design

The silicone valve helps prevent unwanted leakage, dripping and product backflow when the bottle is stored or transported correctly.

Inverted Dispensing

The valve design supports upside-down or inverted bottle dispensing, making it convenient for products that need to be dispensed from the bottom of the container.

Reduced Air Exposure

The self-closing silicone slit minimizes unnecessary exposure between the packaged liquid and surrounding air, helping maintain product quality.

Food-Contact Grade Material Options

The closure can be manufactured using PP and liquid silicone materials suitable for applicable food-contact or consumer-product requirements.

Customizable Appearance

Cap colors can be customized according to brand requirements. Other design parameters, including valve specifications and dispensing performance, can be developed for specific applications.

How to Use the 24/410 screw bottle cap?

The 24/410 screw bottle cap with silicone valve is designed for simple squeeze dispensing:

• 1. Screw the cap securely onto a compatible 24/410 bottle neck.

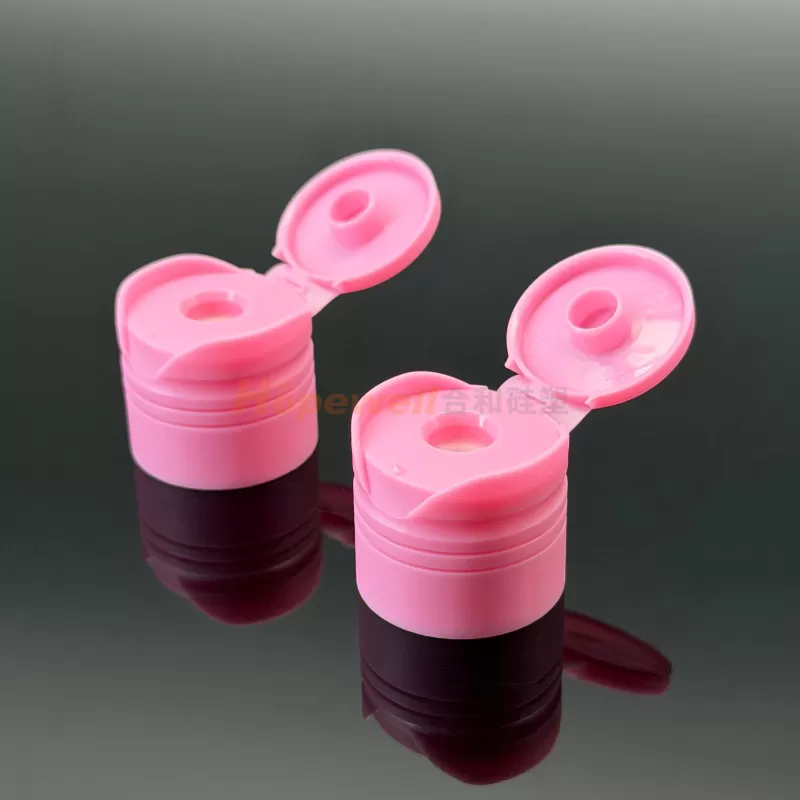

• 2. Open the flip-top dispensing cover, if applicable.

• 3. Hold or invert the bottle according to the intended dispensing position.

• 4. Gently squeeze the bottle to increase internal pressure.

• 5. The silicone cross slit opens and allows the liquid to pass through.

• 6. Release the bottle after dispensing.

• 7. The silicone valve automatically returns to its closed position.

• 8. Close the outer cover after use to provide additional protection from dust and contamination.

The actual opening pressure and dispensing volume depend on the silicone hardness, slit dimensions, valve geometry, liquid viscosity and bottle flexibility. Testing with the customer's actual formulation and bottle is recommended before mass production.

If you are interested in learning about the method of using 24/410 screw bottle cap, please click on the following link:

Manufacturing Process of the Plastic Screw Bottle Cap

The 24/410 screw bottle cap is produced through a controlled plastic and silicone manufacturing process:

Plastic Injection Molding - Further Processing - Inspection - Silicone Valve Assembly - Inspection - Function Test - Dust Free Packing - Shipping

During production, the silicone valve is checked for correct installation and functional performance. Automated inspection equipment is used to verify product appearance and dimensional consistency.

For assembled closures, special attention is given to valve positioning, missing components, sealing performance and dispensing functionality.

Why Choose Hopewell for Silicone Valve Bottle Caps?

Hopewell specializes in the development and manufacturing of silicone valve bottle caps and plastic dispensing closures, combining plastic injection molding with silicone valve production and assembly.

Precision Mold Design and Manufacturing

Our in-house mold engineering capabilities support accurate plastic closure and silicone valve tooling. Mold design is optimized according to bottle neck dimensions, valve geometry, assembly requirements and dispensing performance.

Automated Production

Automated manufacturing and assembly processes help reduce human handling and improve production consistency, particularly for high-volume silicone valve closure projects.

Multi-Level Silicone Valve Inspection

Silicone valves undergo multiple inspection stages to verify correct installation and functional performance. Automated and manual inspection procedures help ensure that there are no missing valves or incorrectly assembled components.

100% CCD Inspection

Automated CCD inspection can be used to perform comprehensive checks of product dimensions, appearance and specified functional characteristics, helping identify defective closures before shipment.

Stable Quality

Controlled materials, standardized production procedures, automated inspection and process monitoring contribute to stable product quality from batch to batch.

Professional Silicone Valve Closure Manufacturer

With extensive experience in silicone valves, plastic closures and silicone valve bottle caps, Hopewell can support both standard products and customized dispensing closure projects.

If you require a custom screw bottle cap with silicone valve, including customized color, valve structure or dispensing performance, please contact us for technical evaluation and samples.

To ensure the cleanliness and function of the screw bottle cap with valve, its packaging is designed to protect it during transportation and storage. The following packaging configuration is standard:
