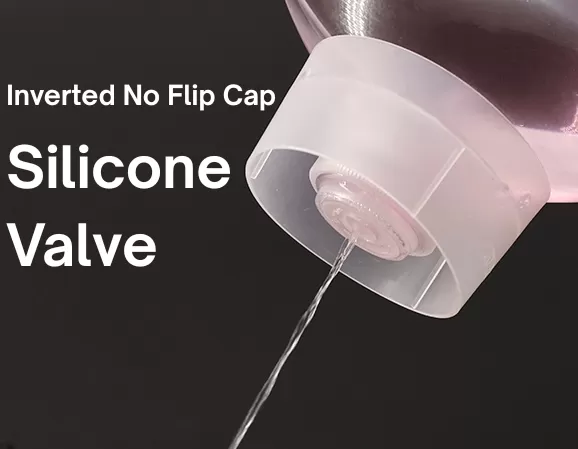

Solving Leakage in Inverted No Flip Caps: A Deep Dive into Silicone Valve Sealing and Flow Control Technology

In today's fast-paced world, consumers demand convenience, cleanliness, and ease of use. In the home care sector, inverted squeeze no flip caps have become a popular packaging trend, especially for dishwashing liquids and cleaning agents. Major global brands have adopted this design to improve user experience dramatically. However, behind this seemingly simple innovation lies a host of technical challenges. Sealing performance, leak prevention, and precise flow control are critical to the success of an inverted squeeze cap. At the heart of this system is the silicone valve—a small yet essential component that determines the product's performance.

This article explores the technology behind silicone valves across five dimensions: raw materials, molding processes, slit design, precision, and flow control. We'll compare high- and low-quality valves in real-world applications, focusing on cleaning product packaging as a typical case study.

1. Raw Materials: The Foundation of Leak-Proof Sealing

The performance of a silicone valve begins with the quality of its raw materials. Premium valves are typically made from food-grade liquid silicone rubber (LSR), the same material used in baby bottle nipples. It offers key advantages:

• 1. High elasticity: Maintains shape even after frequent opening and closing.

• 2. Excellent rebound: Quickly seals shut after squeezing, preventing leaks.

• 3. Safety assurance: Certified by FDA and LFGB standards for direct food contact.

In contrast, inferior valves are often made from recycled or poorly crosslinked solid silicone, resulting in:

• 1. Poor elasticity and fast aging: Loses shape quickly, becoming brittle or sticky.

• 2. Chemical degradation: Reacts poorly with cleaning agents, leading to material breakdown.

• 3. Inconsistent material density: Reduces sealing performance and increases leakage risk.

• 4. Potential health risks: May release odors or harmful substances during use.

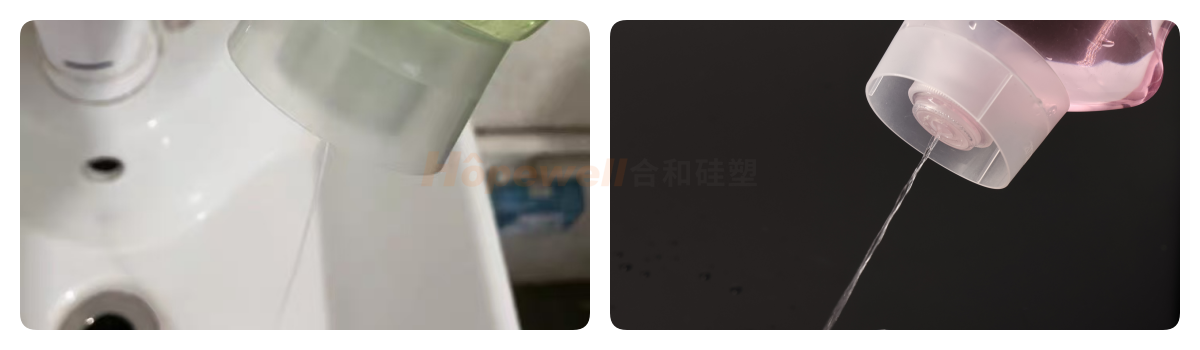

Case Comparison:
A dishwashing liquid from a leading brand uses high-grade LSR valves. Even when stored upside down, the cap remains clean and leak-free. A knockoff product using substandard materials, however, showed valve deformation and leakage within a week—significantly disrupting the user experience.

2. Molding Process: The Key to Consistent Quality

High-performance silicone valves are typically manufactured using liquid injection molding (LIM), which provides:

• 1. High dimensional accuracy: Ensures product consistency and tight seals.

• 2. Efficient automation: Minimizes human error, increases productivity, and lowers costs.

• 3. Clean, burr-free edges: Enhances sealing and prevents leaks.

• 4. Support for microstructure designs: Enables advanced slit patterns for various applications.

Low-cost valves are often produced using traditional compression molding, leading to:

• 1. Poor mold precision: Larger tolerances, inconsistent product dimensions.

• 2. Rough surfaces and flash: Affects appearance and sealing performance.

• 3. Deformation at closure points: Increased risk of leakage.

• 4. Unstable quality across batches: Not suitable for mass production.

3. Slit Structure: Core to Flow Control

For inverted squeeze caps, a common design is a 3×3mm cross-shaped slit.

• 1. Premium valves are cut using high-precision punching tools, ensuring centered, uniform slits that offer:

• 2. Accurate and consistent opening pressure: Controlled dispensing based on user pressure.

• 3. Fast opening and closing: Improves efficiency during use.

• 4. Durability: Resists tearing, extending product lifespan.

Inferior valves, cut manually or with low-precision dies, often suffer from:

• 1. Uneven slits: Leads to poor flow or dripping.

• 2. Ragged edges: Reduces seal tightness and increases leak risk.

• 3. High failure rate due to tearing: Inconvenient and costly for end users.

4. Precision: Consistency Determines Performance

As a precision component, the silicone valve must meet strict dimensional tolerances. High-quality valves are made with CNC-machined molds and LIM technology, ensuring:

• 1. Uniformity across batches: Each valve performs identically.

• 2. Consistent wall thickness: Maintains elasticity and rebound, extending life.

• 3. Centered slit placement: Provides stable opening pressure and accurate flow control.

• 4. Zero-gap slits: Enhances sealing performance, eliminating leakage points.

Case Example:
Silicone valves in premium-brand inverted cleaning bottles seal instantly after use, keeping the bottle clean and preventing drips. In contrast, low-end products frequently leak from the valve area, resulting in mess and user dissatisfaction.

5. Flow Control: The Finishing Touch to User Experience

High-quality silicone valves deliver precise, controllable flow thanks to their elasticity, uniform wall thickness, and well-aligned slits:

• 1. Light pressure = small dosage: Ideal for concentrated formulas and precise applications.

• 2. Firm pressure = continuous flow: Suitable for wide-surface cleaning tasks.

• 3. Smooth, controlled flow: No splashing or sudden bursts—safe and convenient.

In contrast, poorly designed valves often suffer from:

• 1. Sudden splashing upon opening: Wastes product and causes mess.

• 2. Inconsistent dosing: Hard to control—light pressure yields nothing, hard pressure overwhelms.

• 3. Slow rebound: Results in sticky, inefficient operation.

The Small Valve That Makes a Big Difference

Though small in size, silicone valves play a crucial role in the performance of inverted squeeze packaging—ensuring leak-proof storage, accurate dispensing, and a pleasant user experience. Leading international brands rely on high-quality valve technology to deliver premium packaging performance.

By comparison, low-quality valves fall short in every area—materials, process, precision, sealing, and usability—ultimately damaging the product’s reputation and customer satisfaction.

Why Choose HOPEWELL's Silicone Valves?

At HOPEWELL, we've specialized in silicone valve manufacturing for over 15 years. Our valves offer:

• 1. Multiple size options: Perfect fit for inverted squeeze caps, including 9.8mm and 16.5mm valves with 3×3mm slits.

• 2. Excellent sealing: Zero-gap slits, leak-free for 7 days of inverted storage.

• 3. Superior slit quality: Non-sticky cuts, 100% pass rate in extrusion tests.

• 4. High dimensional accuracy: ±0.3mm slit tolerance, ±15° extrusion angle control.

• 5. Uniform wall thickness: Ensures long-lasting elasticity and rebound.

• 6. Advanced equipment: Automated slit punching machines, 100K-class cleanroom, 1 million pcs/day capacity.

• 7. High-precision molds: Imported equipment (e.g., Makino V33i, Toshiba nano processors) guarantees mold accuracy.

• 8. Top-tier production lines: Using Arburg and Sumitomo injection molding machines with sectional feed design for stable sizing and 300K pcs/day per mold.

• 9. Rigorous quality inspection: 2.5D measurement, CCD vision, and AOI auto-inspection for 100% defect detection—up to 1 million units/day.

• 10. Certified quality systems: ISO 9001, ISO 14001, ISO 13485, and IATF 16949 certified.
