Squeeze Bottle Cap with Valve

38/400 Plastic Squeeze Cap with Valve- Black

1. Item Name: 38/400 Plastic Squeeze Cap with Valve

2. Neck Finish: 38/400

3. Outer Diameter: 42mm

4. Silicone Valve: T13 (Cross Slit 5.5*5.5mm)

5. MOQ: 50,000pcs/ lot

6. Application: Sports Engery Drinks

DESCRIPTION

Specification

Plastic Squeeze Cap with Valve | 38/400 Silicone Valve Squeeze Cap Manufacturer


The Plastic squeeze cap with valve is specially designed for large-mouth sports beverage bottles and functional drinks. With a 38/400 neck finish, this squeeze closure provides excellent compatibility with various sports hydration bottles. The unique two-color design combines aesthetic appearance with functional performance, while the tamper evident structure helps protect products from unauthorized opening during storage and transportation.

Equipped with a high-quality food grade silicone valve, this silicone valve squeeze cap delivers controlled liquid dispensing with excellent sealing performance. The valve prevents leakage when the bottle is stored upside down and allows smooth, consistent liquid flow without splashing or dripping. Consumers can easily dispense beverages with one hand, making it an ideal solution for active lifestyles and sports applications.



Product Name

38/400 Plastic Squeeze Cap with Valve

Model Number

HHPC04

Material

FDA Food Safe PP and LFGB Food Grade Liquid Silicone

Color

Red, White, Black, Blue, Yellow (Customized Colors)

Shape

Round

Surface Finish

Polished

Neck Finish

38-400

Outer Diameter

42mm

Height

36mm

Induction Liner

Linerless

Whether With Silicone Insert

Yes

Insert Silicone Valve Size

13mm Silicone Valve with 14.6mm Plastic PP Ring, 5.5*5.5mm Cross Slit Cut

Sealing Type

Flip Top Snap Can+ Silicone Valve

Dispensing Type

Silicone Valve

Manufacturing Technology

Plastic Injection Molding+LSR Injection Molding

Process

Plastic Injection Molding-Further Processing-Inspection-Silicone Valve Assembly-Inspection-Function Test-Dust Free Packing-Shipping

Mold

Public Mold

MOQ

50,000 pcs/color

Daily Capacity

100,000pcs/ line

Application

Sports Water Bottles

Intercoms

EXW, FOB, CIF



Application of Plastic Squeeze Cap with Valve


The Plastic squeeze cap with valve is widely used in the beverage industry, especially for sports drinks, energy drinks, and functional hydration beverages. Its ergonomic squeeze dispensing design allows users to drink directly from the bottle or control the liquid flow easily during outdoor activities, fitness training, and sports events.

For sports water bottles, the 38/400 squeeze cap provides a convenient drinking experience with its one-hand operation and leak-proof performance. The silicone valve inside the cap prevents accidental leakage when the bottle is carried in bags or stored upside down, making it suitable for cycling, running, gym training, and other outdoor activities.

The non-spill squeeze cap is also suitable for functional beverages, electrolyte drinks, and nutritional beverages that require controlled dispensing and a premium consumer experience. The combination of a durable plastic closure and silicone valve technology helps improve product usability and brand value.

Main Applications:

  • Sports water bottles

  • Energy drinks

  • Functional beverages

  • Electrolyte drinks

  • Outdoor hydration products

  • Fitness and athletic beverage packaging

38/400 Plastic Squeeze Cap with Valve- Black

Application

  • Beverage Dispensing Closure

    Beverage Dispensing Closure

  • Water Bottle Sport Cap

    Water Bottle Sport Cap

  • 28mm Flip Top Cap

    28mm Flip Top Cap

Product Information

What is Plastic Squeeze Cap with Valve?


A Plastic squeeze cap with valve is a specially designed beverage closure that combines a plastic cap structure with an integrated silicone dispensing valve. Unlike traditional bottle caps, this closure allows users to control beverage flow by gently squeezing the bottle, providing a convenient and mess-free drinking experience.

The 38/400 squeeze cap is designed with a large neck finish suitable for sports beverage bottles. The tamper evident ring ensures product safety before first use, while the internal silicone valve provides reliable sealing performance to prevent liquid leakage during transportation and storage.

The two-color design offers more possibilities for brand customization and product differentiation, helping beverage brands create attractive packaging solutions.

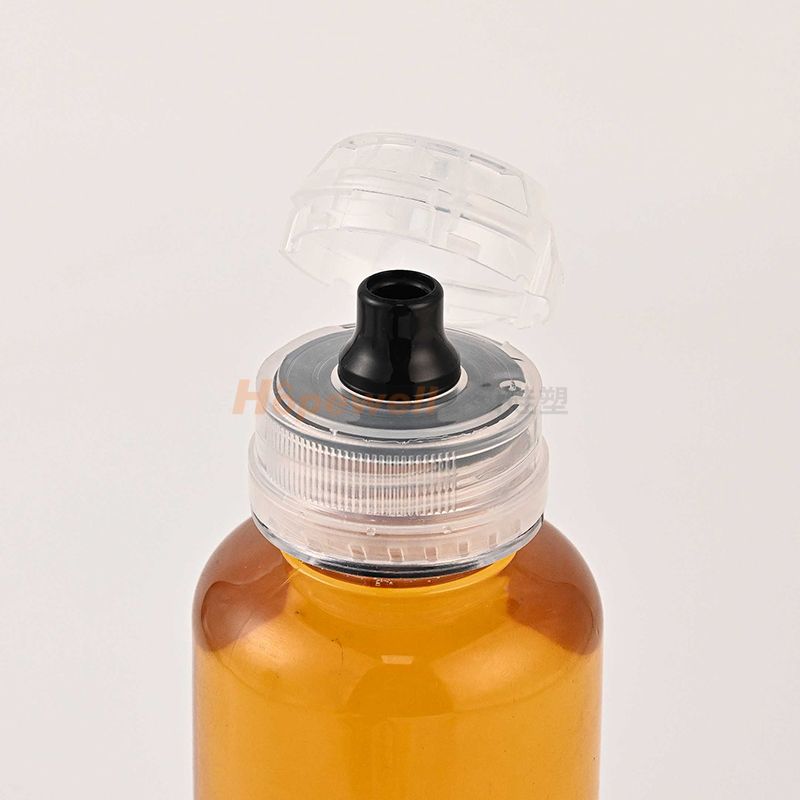

38/400 Plastic Squeeze Cap with Valve- Black

Thread of 38 400 Squeeze Bottle Cap

Push Pull Water Bottle Caps

Advantages of Silicone Valve Squeeze Cap


1. Excellent Leak-Proof Performance

The integrated silicone valve creates a reliable sealing system that prevents liquid leakage when the bottle is carried or stored upside down. It effectively reduces spills and improves consumer convenience.

2. Controlled Dispensing

The silicone valve is designed for smooth and controlled liquid flow. Users can easily squeeze the bottle to dispense the desired amount without excessive flow, splashing, or dripping.

3. Non-Spill Design for Sports Applications

The non-spill squeeze cap is ideal for active users. The valve automatically closes after dispensing, helping prevent accidental spills during sports activities or transportation.

4. Tamper Evident Protection

The anti-theft ring design ensures the bottle has not been opened before purchase, improving product safety and consumer confidence.

5. Customized Design Available

Hopewell provides customized solutions for silicone valve squeeze caps, including different colors, valve designs, opening sizes, and packaging solutions according to customer requirements.


38-400 Bottle Sport Lid


How to Use

How to Use 38/400 Squeeze Bottle Cap with Valve?


The 38/400 squeeze bottle cap with valve is designed for simple and convenient operation.

To use the bottle, consumers only need to remove the tamper evident seal before the first use. When the bottle is squeezed gently, the pressure activates the silicone valve and allows the beverage to flow smoothly. After releasing the pressure, the silicone valve automatically returns to the closed position, preventing leakage and maintaining product cleanliness.

The one-handed squeeze operation makes this closure especially suitable for sports activities, outdoor drinking, and daily hydration.


Manufacturing Process

Manufacturing Process of Plastic Squeeze Cap with Valve


Hopewell uses advanced manufacturing technology to produce high-quality silicone valve squeeze caps with consistent performance.

Hopewell utilizes automated silicone valve assembly machines combined with online CCD inspection systems to ensure every squeeze cap meets customer quality requirements.

Plastic Injection Molding - Further Processing - Inspection - Silicone Valve Assembly- Inspection - Function Test - Dust Free Packing - Shipping



Why Choose Hopewell Silicone Valve Squeeze Cap?


Hopewell specializes in the development and manufacturing of plastic dispensing closures and silicone valve solutions. With extensive experience in plastic injection molding and liquid silicone rubber (LSR) molding, we provide reliable squeeze cap solutions for beverage brands worldwide.

Our 38/400 squeeze bottle caps are manufactured with strict quality control procedures to ensure stable performance, consistent sealing, and reliable dispensing functions.


Why Choose Hopewell:

  • 1. Experienced manufacturer of plastic injection molding and silicone valve molding

  • 2. In-house mold design and manufacturing capabilities

  • 3. Self-developed automatic silicone valve assembly equipment

  • 4. Online CCD inspection system for 100% quality inspection

  • 5. Automated production lines for stable mass production

  • 6. Strict quality management system including ISO9001, ISO14001, ISO22000, and other certifications

  • 7. Factory-direct pricing with competitive production capacity

  • 8. Free samples available for product testing and evaluation

With professional engineering support and advanced manufacturing technology, Hopewell helps customers develop high-performance leak proof beverage closures with consistent quality.

38/400 Plastic Squeeze Cap with Valve- Black

Packaging

Packaging of 38/400 Squeeze Bottle Caps


To maintain product cleanliness, prevent deformation, and protect the squeeze caps during transportation and storage, Hopewell uses professional packaging solutions.


Item Name

PCS/ PE Bag

PCS/ Carton

Carton Size

N.W.

G.W.

38/400 Squeeze Bottle Caps

1,000 pcs1,000 pcs50*40*32 cm9kg10kg



Sports Flip Top Caps

FAQ

  • 1

    Are you a manufacturer or a trading company?

    We're a manufacturer of silicone molding products, with about 10,000 square meters production workshops.

  • 2

    Can you provide free samples?

    Free samples can be provided for quality checking, freight cost need be charged.

  • 3

    What is your MOQ?

    Our moq is 50000 pcs each color.

  • 4

    Can i customize other colors?

    We can do any color you want, just tell us PanTong color you want, we we will do for you.

  • 5

    How long is production time?

    We can produce 100,000 pieces a day, production time is about 3-10 days.

  • 6

    How many types of closure are there?

    We have four styles bottle caps: 28-400 dispensing closure with 32 mm outer diameter; 38-400 dispensing closure with 40 mm outer diameter; 38-400 flip top cap with 40 mm outer diameter; 38-400 traditional flip top cap with 53 mm outer diameter.

  • 7

    Can you do flip top cap without silicone valve?

    Yes, we can do flip top cap with silicone valve insert, can also do it without silicone valve.

  • 8

    What is the use of plastic cap?

    Plastic cap can be used for plastic squeeze bottles dispensing, such as: ketchup, mayonnaise, honey, syrup, mustard, sauces, dairy, tomato sauce, soy sauce, vinegar, spreads, juice concentrate, water, sports water, concentrates, beverage, drinks and all liquids dispensing.

  • 9

    What certifications do you have for plastic bottle caps?

    Our plastic bottle caps passed European Food Contact Material Certificae, they can also meet FDA and LFGB certification.

  • 10

    Can i vist your factory?

    Of course, highly welcome.
